DynEDGE

Dynamometer Controller with INERTIA software

DynEDGE is an integrated control and data acquisition system designed for dynamometer applications, suitable for system modernizations, new installations, turnkey systems, and complete test cell control and data acquisition. It utilizes NI PXI hardware along with Genuen's connector blocks and power module to reduce cost, streamline connectivity, and simplify integration. The system provides a wide range of I/O capabilities for dynamometer applications and is easily customizable due to its off-the-shelf hardware.

DynEDGE Applications

Key Features and Benefits

DynEDGE is a complete dynamometer control, monitoring, and data acquisition system.

Ready-to-use hardware and software specifically for dynamometer applications
Control across multiple feedback channels with bumpless mode switching
Built-in signal conditioning for connecting to sensors and actuators
Application-specific test profiles for dynamometer testing
Scalable and customizable by end user
Expandable 4-axis test cell controller with up to 1 kHz digital PID loop closure
Wide variety of I/O, including frequency, encoder, strain gauge, thermocouple inputs, and numerous TTL and 24 VDC digital I/O
Components housed in a single, 19-inch rack-mount enclosure with pullout keyboard tray, filtered ventilation port, and 4-inch casters
Real-Time PXI system powered by NI VeriStand with INERTIA^TM add-on preloaded and all channels configured

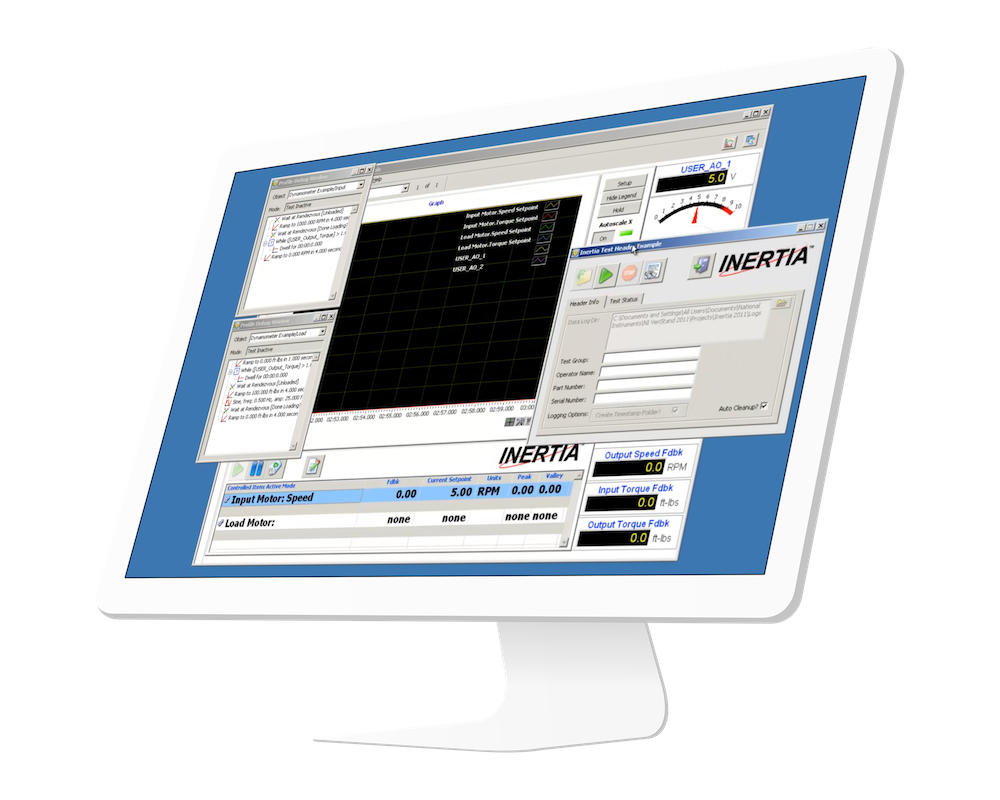

Operator PC preloaded with NI VeriStand and INERTIA^TM control software with custom procedure commands for simplified setup and mode control
Easy connectivity to connector blocks simplifies sensor wiring
Integrated network hub and e-stop circuitry
