ServoEDGE
Servo-hydraulic Controller with INERTIA software
Servo-Hydraulic Controller with INERTIA
ServoEDGE is an integrated, multi-loop control and data acquisition system designed specifically for hydraulic and servo-hydraulic applications, including system modernizations, new installations, turnkey systems and complete test cell control and data acquisition systems. The system is designed and pre-configured using both NI PXI hardware and Genuen's integrated connector blocks and power module, which minimize cost and simplify connectivity and integration. The configured system provides a wide range of I/O capabilities for typical hydraulic applications; and since the system is based on off-the-shelf hardware, it can be easily modified to cover a wide range of I/O requirements.
ServoEDGE Applications

Test Applications
Dynamometers, hydraulics, and other custom test machines

Industries
Automotive, aerospace, industrial and commercial

Motorized Vehicles
Cars, trucks, commercial vehicles, off-highway vehicles, and motorcycles

Components
Combustion engines, hybrid and electric motorsKey Features and Benefits
ServoEDGE is a complete hydraulic control, monitoring, and data acquisition system
-
Ready-to-use hardware and software specifically for hydraulic and servo-hydraulic applications
-
Control for two drives with multiple feedback channels and bumpless control mode switching
-
Built-in signal conditioning for connecting to sensors and actuators
-
Application-specific test profiles for servo-hydraulic testing
-
Scalable and customizable by end user
-
Expandable 4-axis test cell controller with up to 4 kHz digital PID loop closure
-
Real-time, deterministic control and data acquisition for servo-hydraulics
-
Multitude control
-
Wide variety of I/O, displacement, strain gauge, thermocouple inputs, and numerous TTL and 24 VDC digital I/O
-
19-inch rack-mount enclosure with VeriStand and the INERTIATM add-on preloaded and all channels configured
-

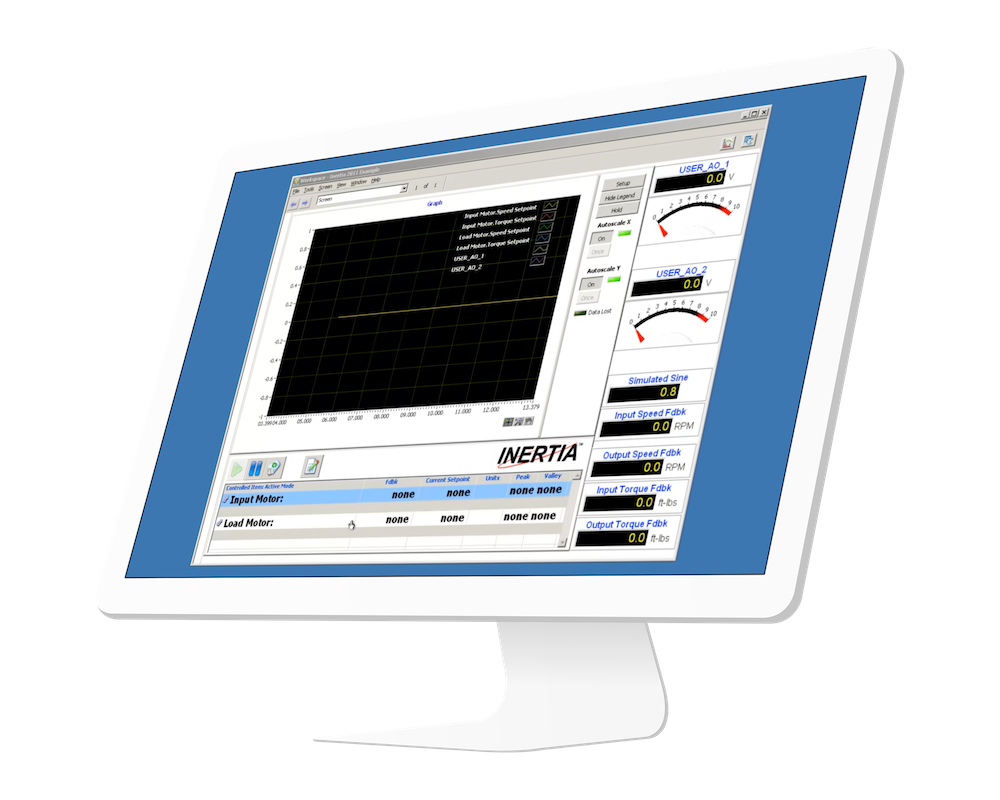

Preloaded operator PC with VeriStand and INERTIA control software with custom procedure commands for simplified mode control and setup
-
Easy connectivity to connector blocks makes wiring sensors easy
-
Integrated network hub and e-stop circuitry
